High security bolt seal
JF-012 O type
Quantity
High security bolt seal applications
Containers( by sea,by air,inland transportation) 、Trucks、
Tanks、Barrels、Boxes and etc
bolt seal material
Pin：ABS plastic, Carbon steel,galvanized
Cape：ABS plastic cover the locking parts

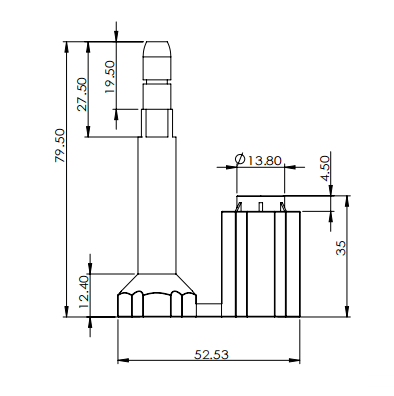

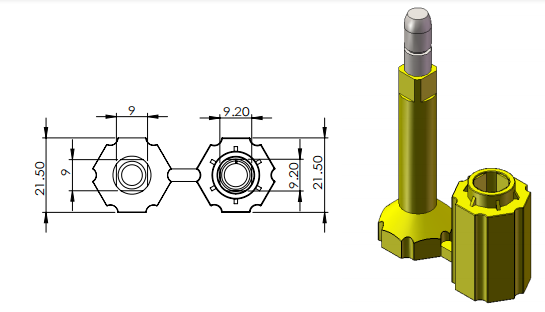

dimensions
Pin: Length:79.5mm diameter: 21.5mm
Cape：Length:35mm diameter: 13.8mm
Containers( by sea,by air,inland transportation) 、Trucks、
Tanks、Barrels、Boxes and etc
bolt seal material
Pin：ABS plastic, Carbon steel,galvanized
Cape：ABS plastic cover the locking parts
dimensions
Pin: Length:79.5mm diameter: 21.5mm
Cape：Length:35mm diameter: 13.8mm
bolt seal strength
ISO/PAS17712:2013 compliant
Average tensile strength above 1800kg
marking/printing
Customer’s company name & logo
Sequential numbers
Laser print or heat stamp
Laser print the bar code on the bullet seal
security bolt container seal colors
Red Orange Yellow Green Black White Blue Purple
Customized color
packaging
Standard Packaging: 200pcs/ carton
Carton Dimensions: 480X 295 X 105mm
Carton weight: Gross:12 kg Net:11.5kg
Standard Packaging: 250pcs/ carton
Carton Dimensions: 480 X 295 X 125mm
Carton weight: Gross: 15kg Net:14.5kg
Standard Packaging: 400pcs/ carton
Carton Dimensions: 500 X 306 X 240mm
Carton weight: Gross:24kg Net:23kg
ISO/PAS17712:2013 compliant
Average tensile strength above 1800kg
marking/printing
Customer’s company name & logo
Sequential numbers
Laser print or heat stamp
Laser print the bar code on the bullet seal
security bolt container seal colors
Red Orange Yellow Green Black White Blue Purple
Customized color
packaging
Standard Packaging: 200pcs/ carton
Carton Dimensions: 480X 295 X 105mm
Carton weight: Gross:12 kg Net:11.5kg
Standard Packaging: 250pcs/ carton
Carton Dimensions: 480 X 295 X 125mm
Carton weight: Gross: 15kg Net:14.5kg
Standard Packaging: 400pcs/ carton
Carton Dimensions: 500 X 306 X 240mm
Carton weight: Gross:24kg Net:23kg
