Bolt seal
price
US $0.35 - US $0.70 / pieces
JF-009-2
200 pieces
China
30Day
Quantity
bolt seal applications
Containers( by sea,by air,inland transportation) 、Trucks、
Tanks、Barrels、Boxes and etc
bolt seal material
Pin：ABS plastic, Carbon steel,galvanized
Cape：ABS plastic cover the locking parts

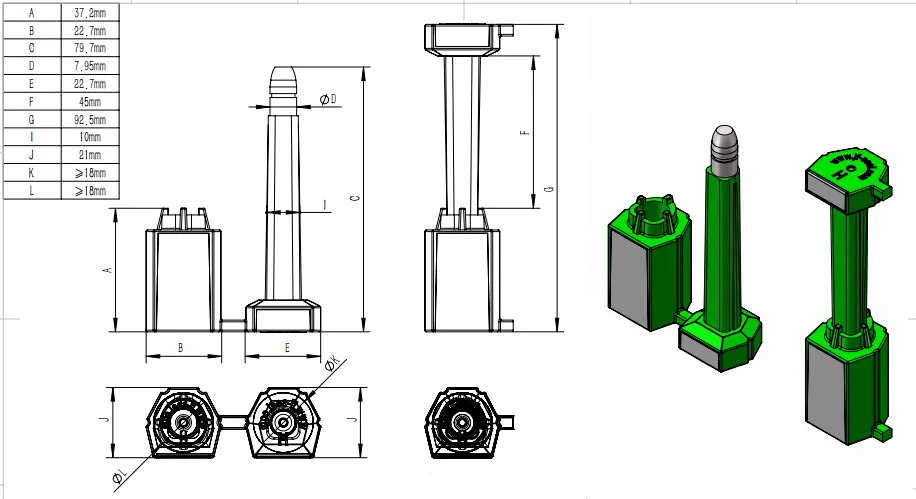

dimensions
Pin: Length:79.7mm diameter: 10mm
Cape：Length:37.2mm diameter: 21mm
bolt seal strength
ISO/PAS17712:2010 compliant
Average tensile strength above 1300kg
marking/printing
Customer’s company name & logo
Sequential numbers
Laser print or heat stamp
Laser print the bar code on the bullet seal
bolt seal colors
Red Orange Yellow Green Black White Blue Purple
Customized color
packaging
Standard Packaging: 200pcs/ carton
Carton Dimensions: 405X 305 X 125mm
Carton weight: Gross:12.4 kg Net:11.9kg
Standard Packaging: 250pcs/ carton
Carton Dimensions: 505 X 305 X 125mm
Carton weight: Gross: 15.8kg Net:15kg
Standard Packaging: 300pcs/ carton
Carton Dimensions: 510 X 300 X 145mm
Carton weight: Gross:19kg Net:18.2kg
